Xhorse XKB510EN VW B5 Style Wired Remote | 3 Button Flip Key

Classic VW Flip Remote – Wired Generation with Full VVDI Compatibility

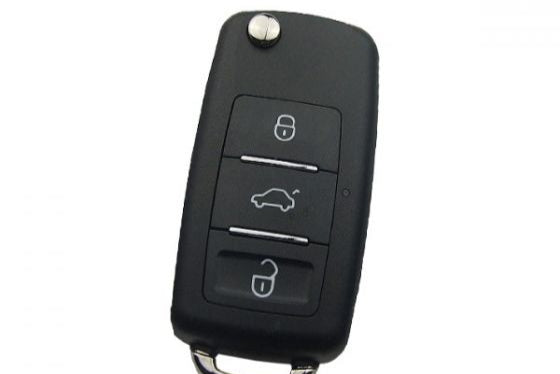

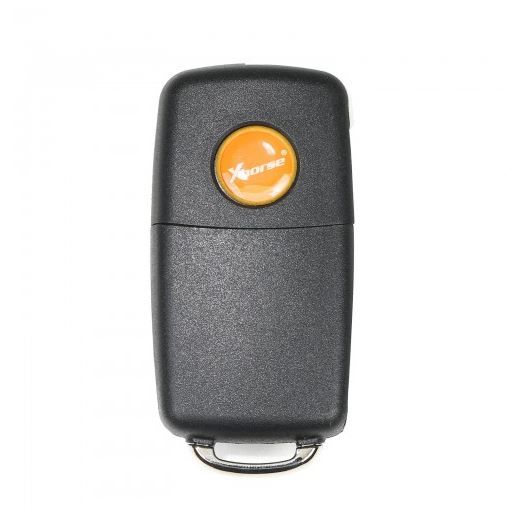

The Xhorse XKB510EN is a universal 3-button wired flip remote designed in the VW B5 style. Ideal for locksmiths and key programmers, this remote supports cloning and generation through all major VVDI tools via a wired connection.

🔧 Key Features:

• 🔒 3-Button Layout: Lock / Unlock / Panic

• 🔌 Wired Interface: Connects via VVDI remote cable for programming

• 🛠️ VVDI Tool Compatible: Works with VVDI2, Mini Key Tool, Key Tool Max, Key Tool Plus

• 🧱 High Build Quality: Factory-tested construction

• 🔋 Battery & Key Blade Not Included (sold separately)

• ❗ No Transponder Chip Installed – Add Xhorse Super Chip or OEM transponder as needed

🛠️ Programming Instructions:

1. Remove the battery

2. Connect VVDI remote cable to the white connector on PCB

3. Use VVDI device to select and generate remote

4. Disconnect cable, reinsert battery, reassemble

5. Program remote to the vehicle

6. Insert and program transponder chip (if needed)

This is a universal wired programmable remote, not a direct OEM replacement.
