OBD Data Interface - Dynomag | MagicMotorsport

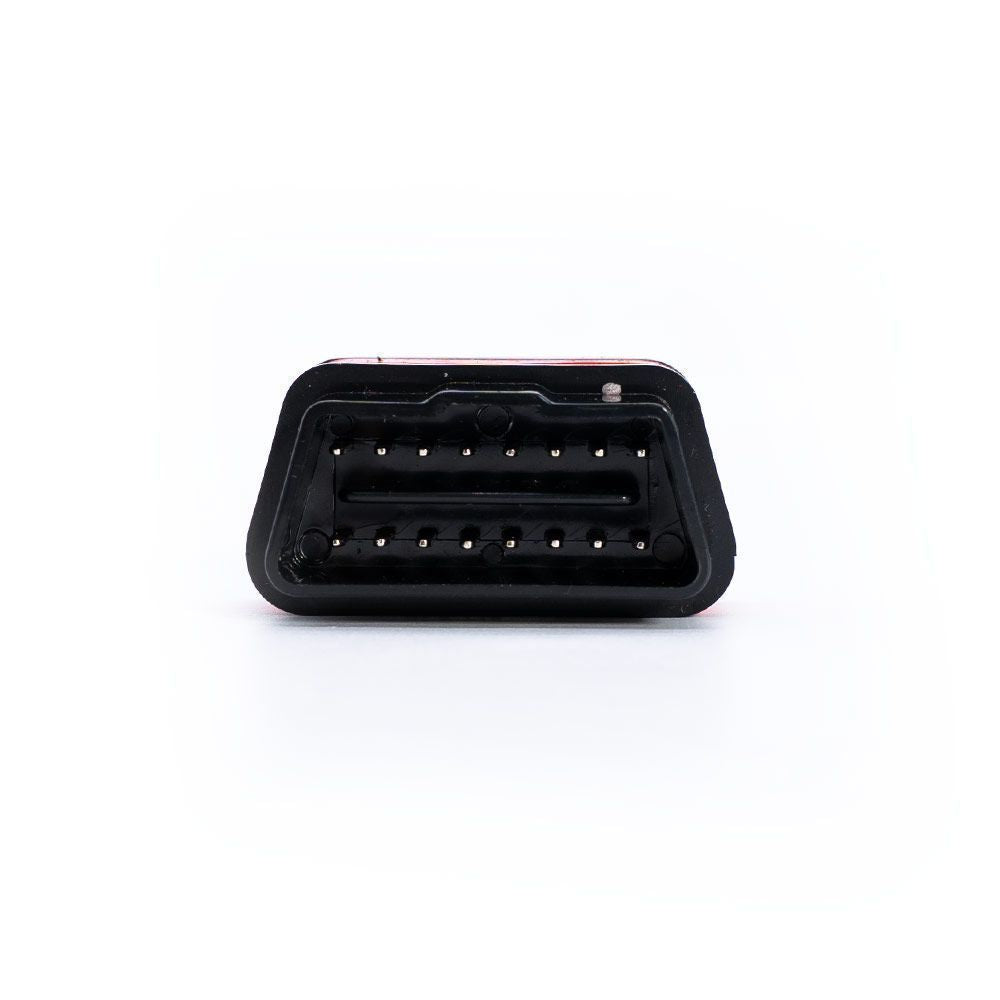

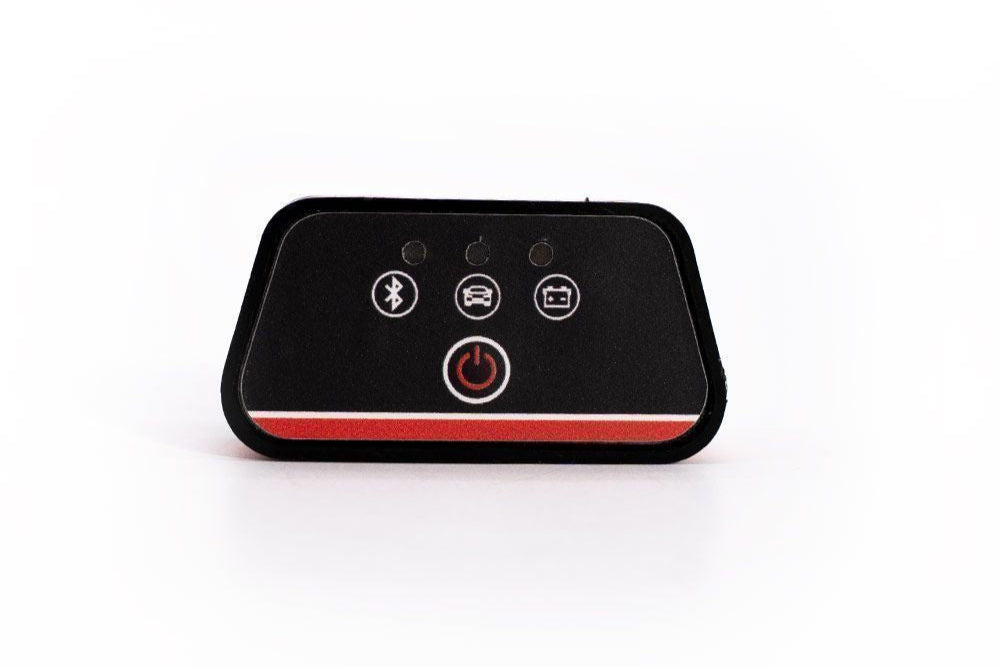

The OBD Data Interface for Dynomag is a compact and precise module designed to connect directly to a vehicle’s OBD port, enabling live data acquisition and communication with Dynomag dynamometer systems.

Once connected, the device reads data such as engine speed, throttle position, and other key parameters directly from the ECU. These values are displayed and analyzed in Dynomag software — both in real time during tests and in post-analysis charts.

By activating the dedicated OBD function in the software, the system automatically synchronizes the engine’s live data with the Dynomag test platform, allowing users to perform accurate pre-calibration and performance assessments before and during dyno runs.

Supported Protocols:
SAE J1850 PWM, SAE J1850 VPW, ISO 9141-2, ISO 14230-4 KWP, ISO 15764-4 CAN

Key features:

• Plug-and-play OBD connectivity for Dynomag systems
• Real-time data streaming from the vehicle ECU
• Compatible with a wide range of communication protocols
• Simplifies calibration and baseline testing
• Compact, durable design for workshop use

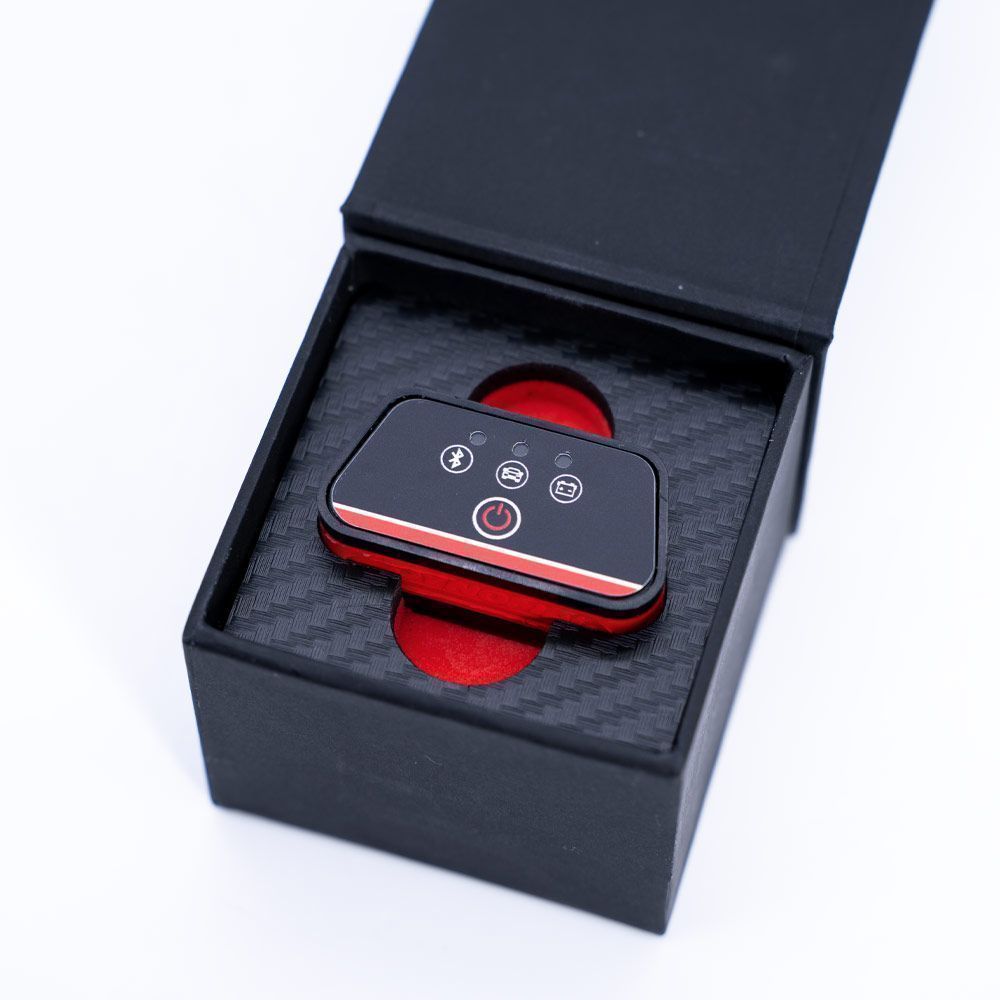

In the box:
1× OBD Data Interface module
1× Connection cable
Quick-start documentation
